Azure Migrate Deep Discovery

The following will show you the step-by-step setup for Azure Migrate Deep Discovery, installing both the Microsoft Monitoring Agent (OMS / SCOM) and the Dependency Agent (Service Map / Wire Data).

Azure Migrate has two types of discovery that logically runs in order, 1) a Light Discovery (agentless) which leverages the VMware inventory, and 2) a Deep Discovery (agent based).

This guide assumes you have already completed the Light Discovery.

  1. In the Azure portal http://portal.azure.com – the very top, search for Azure Migrate or Migration Projects.

    2018-06-15_1314

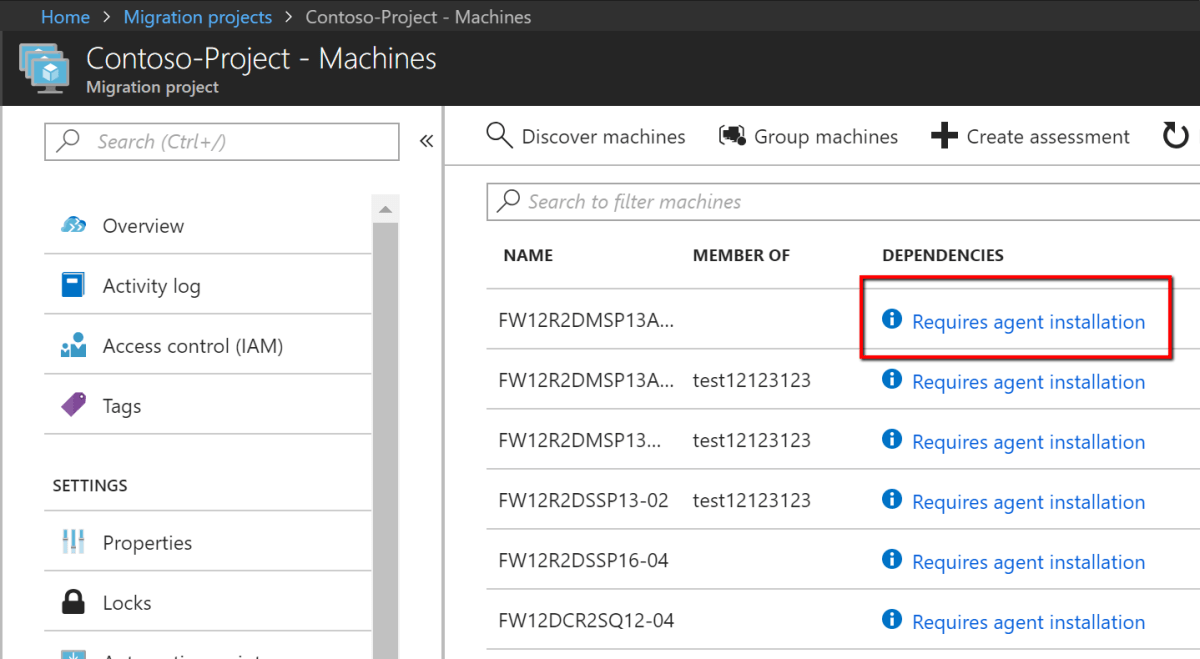

  2. Go to your Migration Project > click on Machines > in the dependencies column, click on one of the links ‘Requires agent installation‘.

    2018-06-15_1305

  3. Follow the steps as per the below screenshot:
    1. Install the MMA Agent first
    2. Install the Dependency Agent second

If you have machines with no internet connectivity to OMS, you need to download and install OMS gateway.

2018-06-15_1317

You need to use the OMS workspace ID specified here, otherwise things won’t be free, such as Service Map for example.
